Features
Propulsion Line Management System: Propulsion Spool Lip, Power Roller II, S-Arm Cam
Varispeed Oscillation
Shielded Stainless Steel Ball Bearings
Lightweight Graphite Frame, Sideplate & Rotor
Cold Forged Aluminum Spool
S Concept: S-Guard, S-Arm Cam
Ported Handle Shank
Rubber Handle Grips
Fluidrive II
Dyna-Balance
Super Stopper II
Repairable Clicker
Approved for use in Saltwater
Rated for use with mono, Fluorocarbon, and PowerPro lines
Spool with the drag washers.
If you want to change this to carbontex, size of the washer is
17.5mm x 5.4mm x 1mm
Shaft gear
Line roller without bearings. I'm not sure if this could be upgraded to ball bearings.
Two piece reel guard...
. Drive gear bearings with size Size is 19mm x 6.9mm x 4mm
Drive gear all cleaned up.
Anti-reverse bearing with the clutch removed.
See those two arrows on the drive gear and the oscillating gear, they should be aligned when you re-assemble them as they will cause binding.
Pinion gear
Oscillating slider.
Reel body.

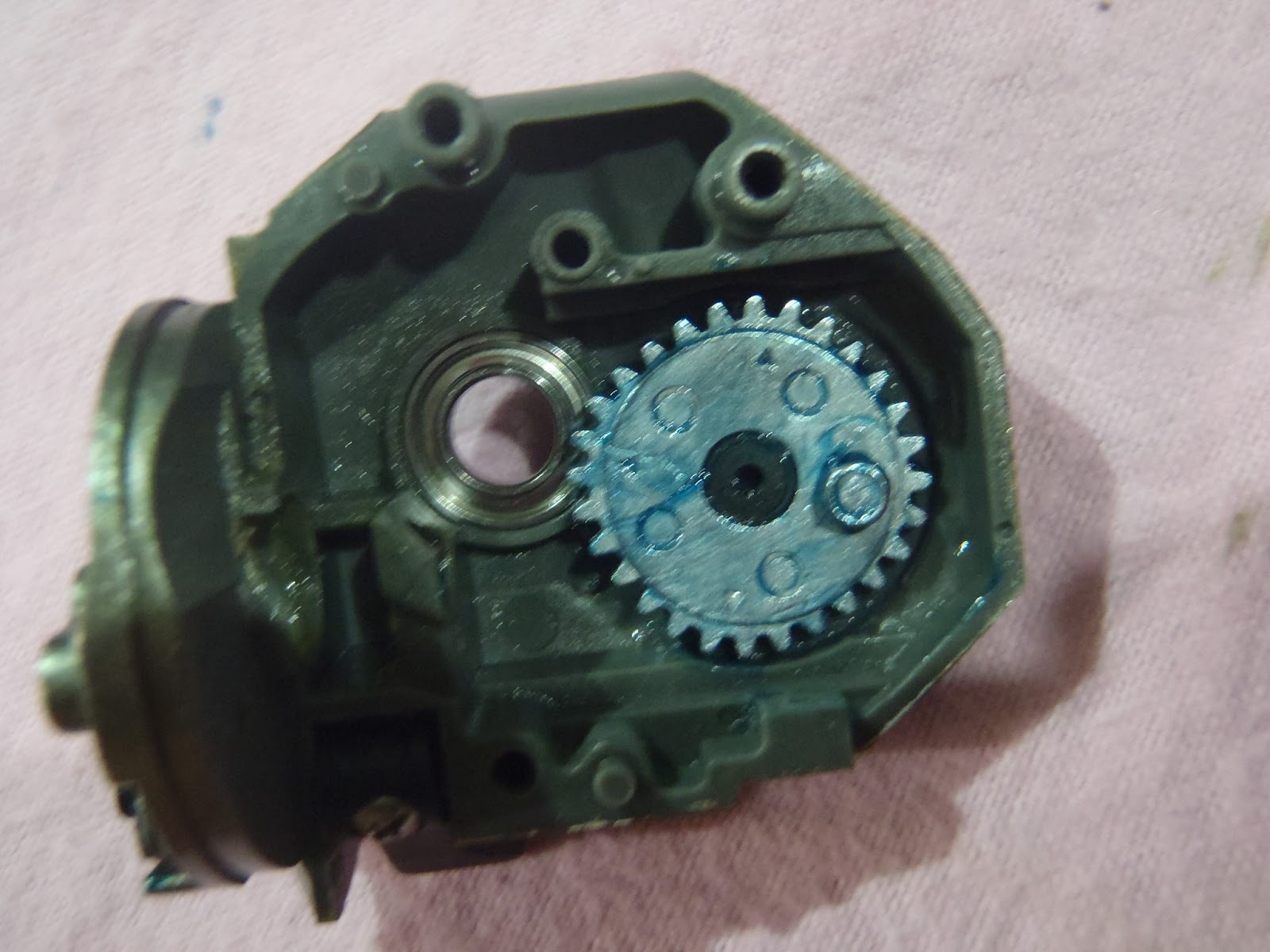

Bearing installed and oscillating gear greased.
Drive gear, oscillating gear, slider and anti-reverse bearing installed.
Shaft screwed back.
All gears were greased.
Reel body closed.
Rotor installed
Reel servicing complete.
