Pflueger Trion 4735GXRX
Specification
-Instant anti-reverse one-way clutch bearing
-Anodized aluminum spool with titanium spool lip for added line protection
-Lightweight graphite body and rotor
-Sure-Click™ bail
-Large diameter titanium coated ball bearing line roller
-Smooth drag system with stainless steel and oiled felt washers
-Corrosion-resistant stainless steel main shaft and components
-Aluminum handle with rosewood knob
-Spare aluminum spool included

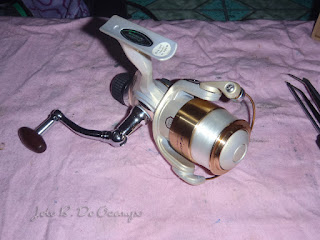

This is the rear-drag version. I have this reel loaded with 4lbs line. This reel comes with an extra spool. I'm looking for a 2lb line for that extra spool.
Disassembled parts.
Body and side plate lightly greased. The side plate is made of metal but the body is not.
The drag arranged for assembly.
The drag retainer, washer and the insert prior to assembly
With the sleeve and the spring.
The drag stack. There is an extra drag behind the drag stem.
I'm not familiar with the material of this drag washer. This does not look like felt as stated in their specs. If you want to change this to carbontex,
size is 13.2mm x 6.1mm x 0.5mm
The stem with the extra washer.
Showing the keyed washer.
This design is different from what i have seen though i haven't seen much. There are two eared washers compared to the normal one.
(Note: Edited)
Here is the assembled drag washer.
Washers returned to the rear end of the body
Spring installed.
Insert and retainer completely installed.
Right side bearing and the oscillating gear returned. These bearings were oiled with argent reel oil.
If you want to upgrade the bearings, size if the main gear bearings is 12mm x 8mm x 2.5mm. The oscillating gear slider is 10mm x 6mm x 2.5mm
The anti-reverse bearing with the clutch installed.
Main gear greased.
Oscillating slider also greased heavily.
Oscillating gear greased and installed.
Pinion gear bearings.
Size of the bearing is the same as the left drive gear bearing. 14mm x 8mm x 3.5mm
Anti-reverse bearing installed and no grease or oil applied.
There are two bearing in the pinion gear. Same size.
Shaft holder installed.
Drive gear installed and greased.
All bearings were oiled and not greased.
The line roller also has a bearing bring the total to 6. Line roller bearing size is 7mm x 4mm x 2.5mm
Don't forget the plastic bushing in the pinion.
Reel assembly complete. I might want to try a Shimano Baitrunner after this...lol...
Gentle reminder, the middle cover, the bigger one, is screwed to the body together with the side plate. Don't just yank it.
